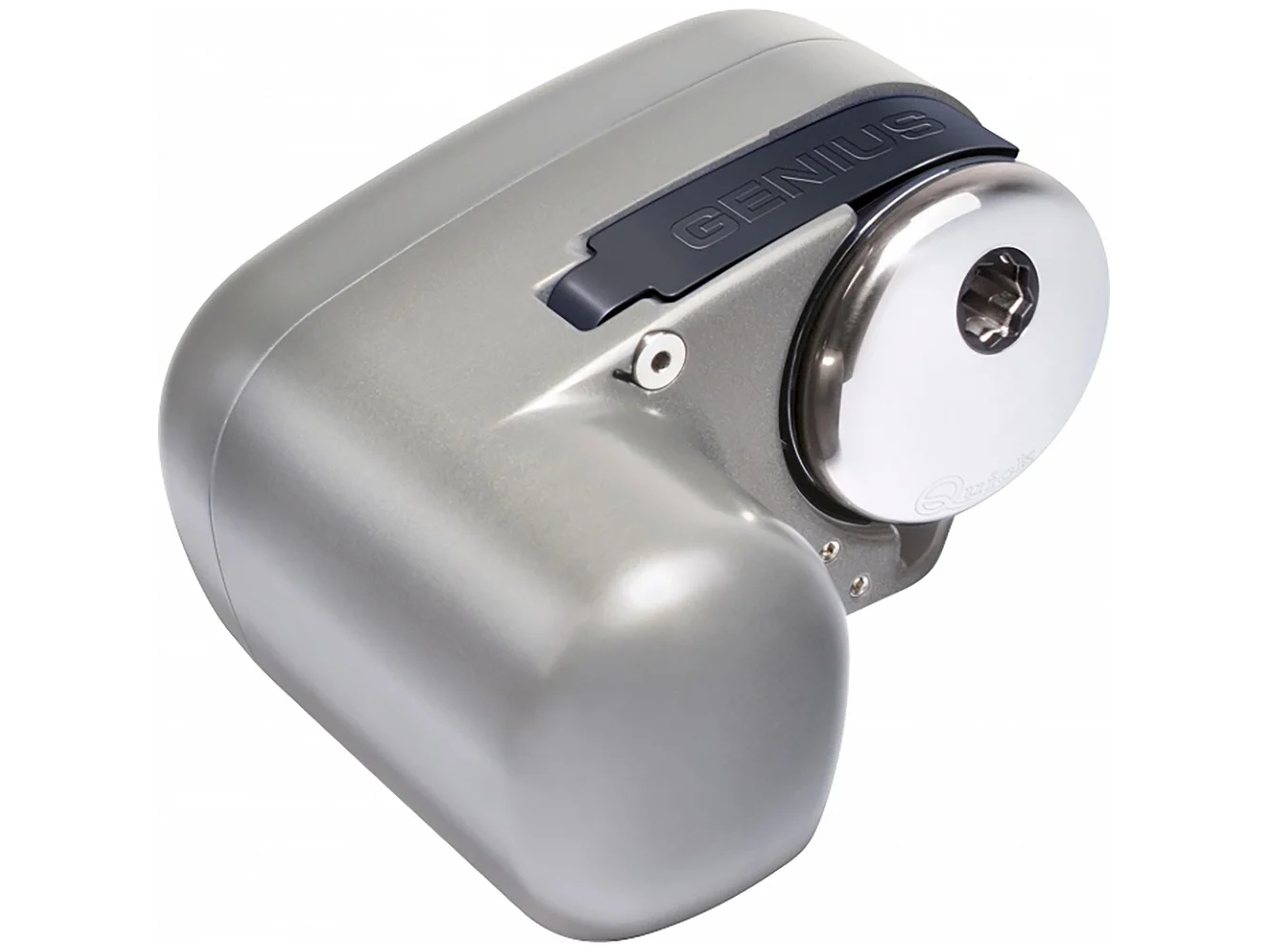

Genius GP2 500 Windlass – 150W, 12V, 1/4" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- White composite material base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Includes T6411-12 Solenoid
Specifications:
- Motor power – 150 W
- Motor supply voltage – 12 V
- Maximum pull – 220 Kg / 485 lb
- Maximum working load – 70 Kg / 154 lb
- Working load – 35 Kg / 77 lb
- Current absorbtion @ working load – 29 A
- Maximum chain speed – 38,9 m/min / 127.6 ft/min
- Maximum chain speed @ working load – 28,5 m/min / 93,5 ft/min
- Weight – 13.2 lb
