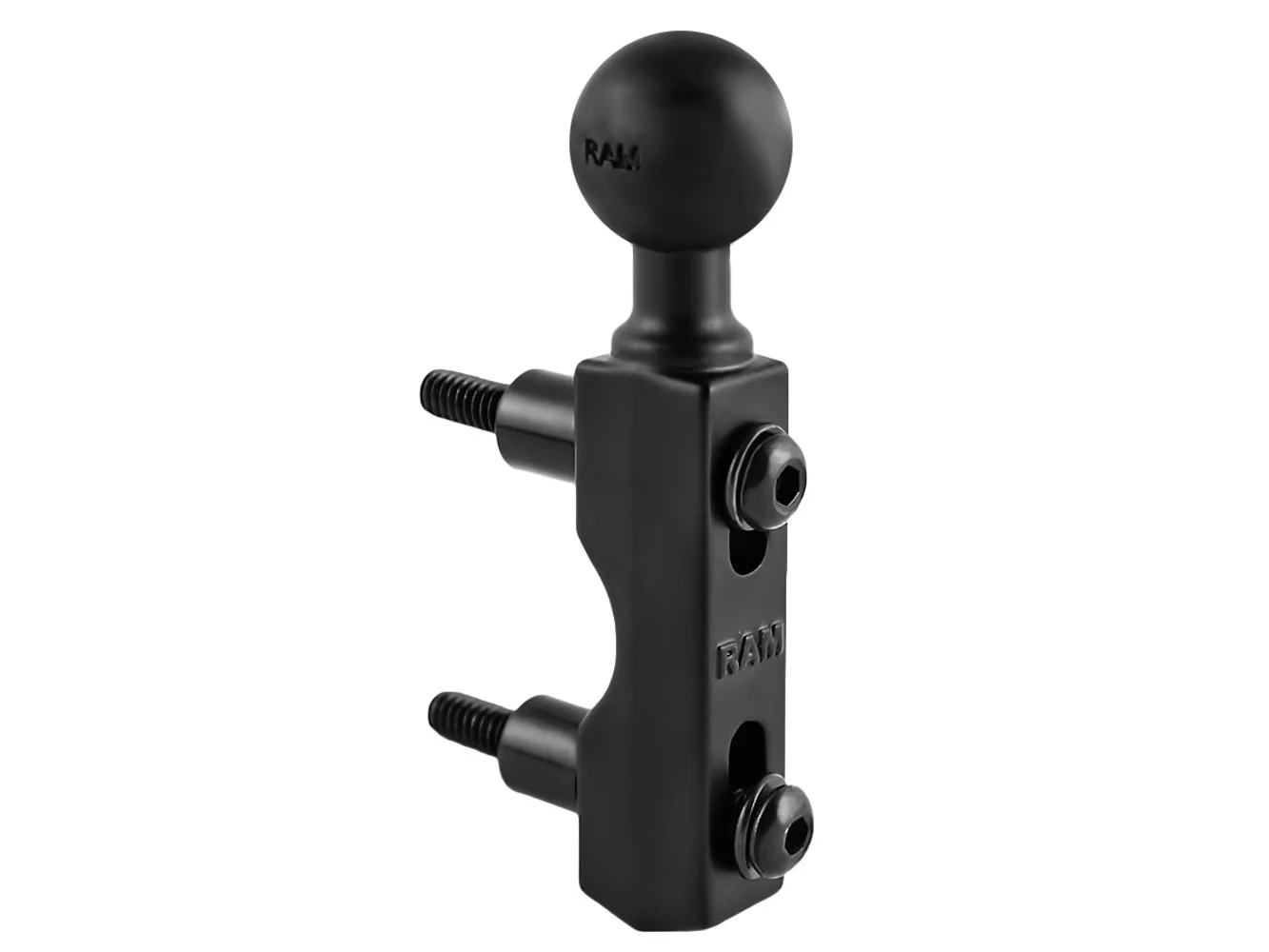

RAM Motorcycle Brake/Clutch Reservoir Base w/1″ Ball
The RAM-B-309-1U connects to your handlebar clutch/brake clamp, left or right side, and holds one 1″ diameter mounting ball. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″.
Material:
Powder Coated Marine Grade Aluminum
Ball Size:
1″ Rubber Ball “B” Size
Note:
The “U” in the part number reflects product packaged in poly bag.
| Quick Guid | https://productimageserver.com/literature/quickGuide/45519QG.pdf |
