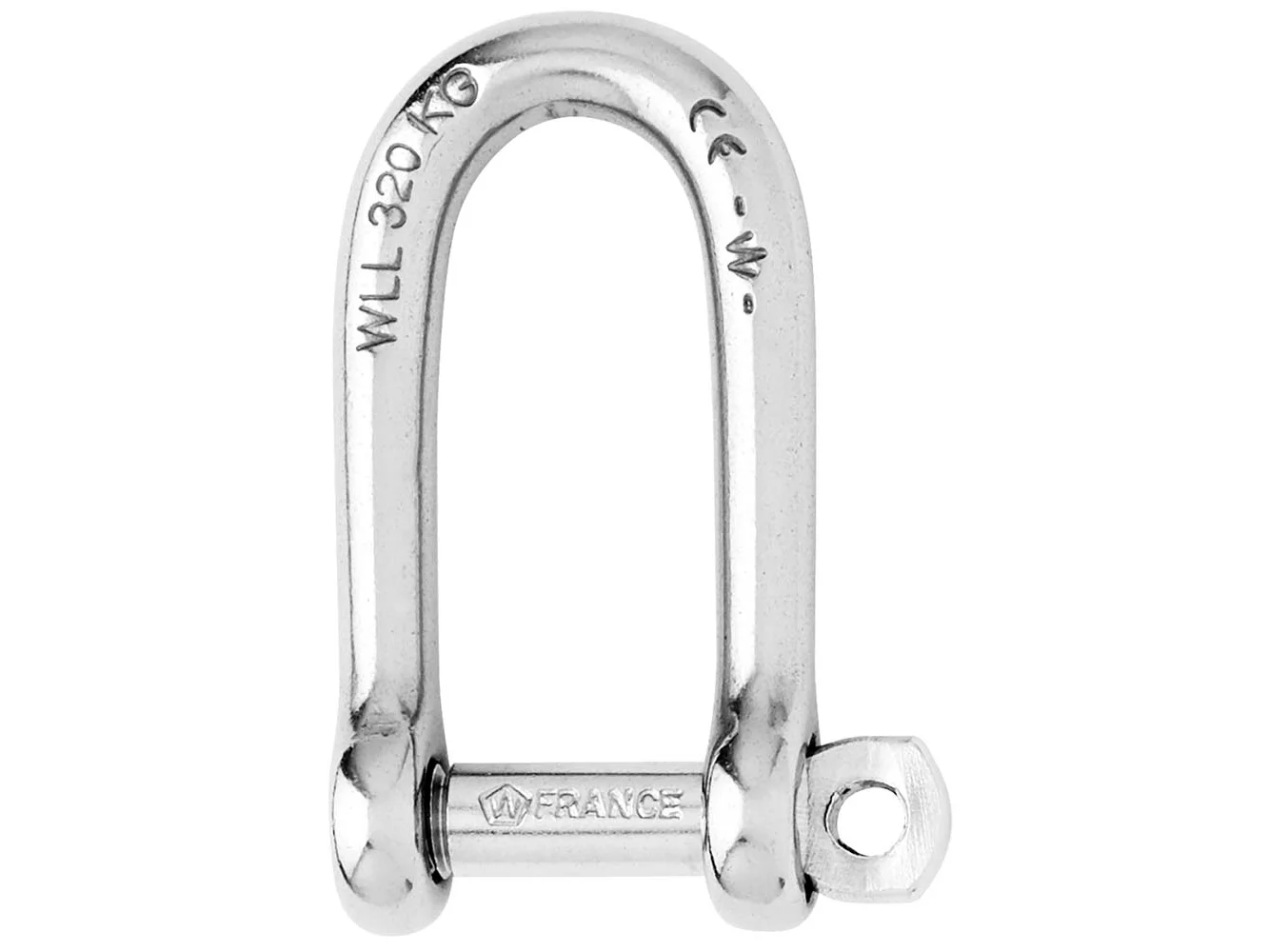

Self-Locking Long D Shackle – Diameter 5mm – 3/16″
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 880
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.037
Dimensions (see 2nd image):
- A (inch) 1-9/64″
- B (inch) 25/64″
- C (inch) 13/64″
- D (inch) 25/64″
- D diameter (inch) 13/64″
- E (inch) 5/32″
- F (inch) 1-39/64″
- G (inch) 1-1/32″
